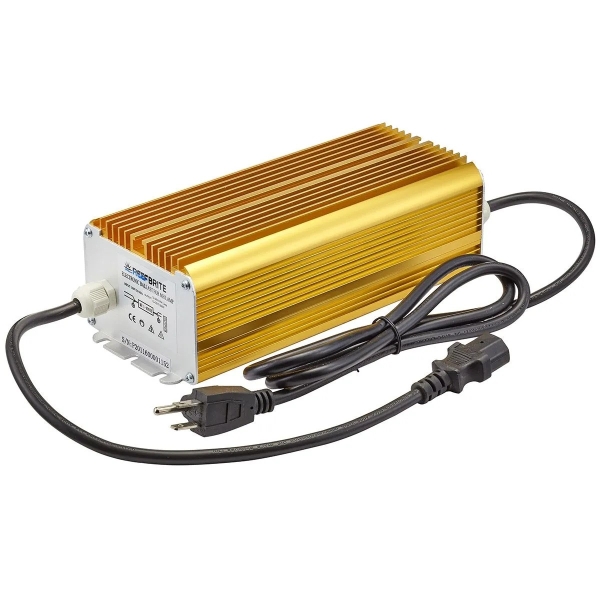

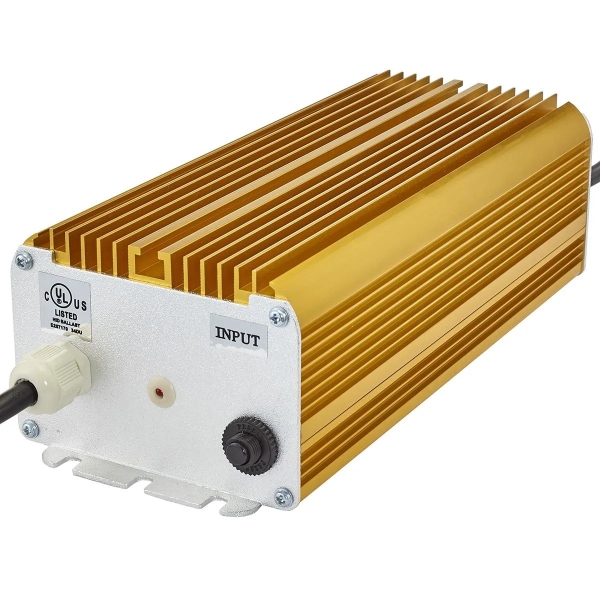

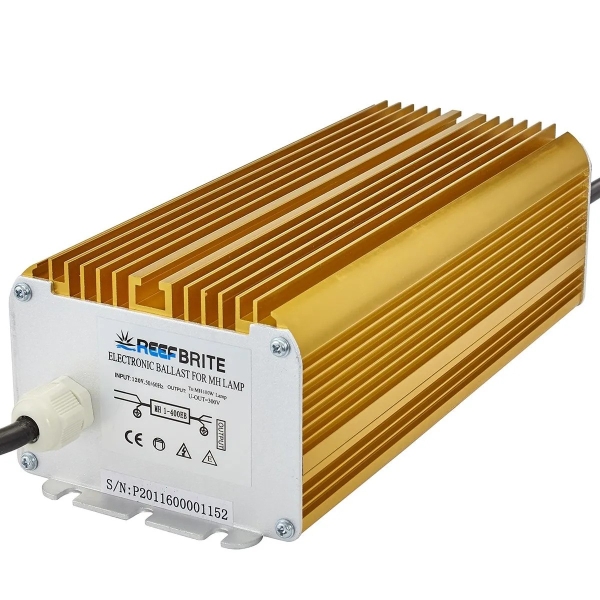

REEF BRITE 400 Watt Metal Halide Digital Ballast

Microprocessor Controlled Electronic Ballast

This energy saving, water tight solid state metal halide ballast will provide years of maintenance-free use. With a lower operating cost, Reef Tech ballasts use less power. Built in microprocessor constantly monitors the lamp and other components to keep the entire system working at optimal performance.

Compatible with all 400W metal halide lamps.

• Digital
• Dimmable 1-10V
• Lightweight
• Connects directly to Reef Brite Reflectors

Digital ballasts are easily the best ballasts you can find for metal halide lamps. The digital processor inside of the ballast will automatically detect the type of bulb, and the start mode that will allow it to fire properly. Once the lamp is fired and running the ballast will also set the proper power output to the lamp for the best color and intensity.

Reef Brite Digital Ballasts are fully dimmable through any 1-10V controller like an Apex. The ballasts use true incremental dimming instead of variable wattage like other leading ballasts. Incremental dimming allows you to ramp up the lamp up and down manually through your controller. We do recommend running the lamp for 1 week before using the dimming feature, allowing the bulb to “burn-in” giving the lamp a much longer lifespan.

Statistics:

• Input Voltage – 100-150 VAC
• Input Current – 3.55A
• Input Power – 412w
• Power Factor – >.98%
• Dimmable – 1-10V control input

What’s Included?

1x 400W Digital Metal Halide Ballast

Note: 1-10V controller required for dimming capabilities.

Metal Halide Ballast comes with BlueLine style connector
