A Smart Way to Add More Outlets to Your Apex

• 4 Independently Controlled Outlets
• 1 High-Output Outlet Rated for 12 Amps
• Ideal for Chillers and High-Energy Devices
• Built to Last with Aluminum Construction
• Seamless Integration with Apex Systems

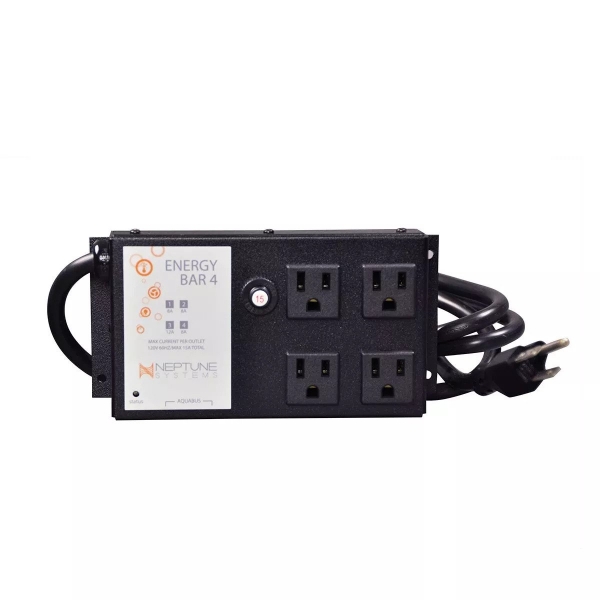

The Energy Bar 4 is a solid way to expand your Apex setup when you just need a few more outlets. It gives you four individually controlled ports, including one that can handle up to 12 amps. This makes it a great option for powering equipment that pulls more juice, like a chiller or larger heater. Built with a durable metal housing and designed to work seamlessly with your Apex and Apex Fusion, it’s a dependable option to expand your Apex Controller setup.

When would you choose the EB4 instead of the newer EB832?

The EB4 includes one outlet rated for 12 amps, which makes it a better fit for running high-draw equipment like a chiller or larger heater. If you need a heavy-duty outlet for a single piece of gear, the EB4 has you covered. It’s also a great option when you just need a few more outlets without the extra cost of another EB832.

What are the key differences between the EB4 and EB832 besides the number of outlets?

The EB832 offers more advanced features, including per-outlet power monitoring, 1LINK ports, and built-in 24V ports. The EB4 does not include those, but it does provide a higher per-outlet capacity on one of the ports and a more compact, rugged aluminum housing. It’s a simpler, more focused option that works well for specific use cases.

Specifications

• Total Outlets: 4Max Total Current: 15 Amps
  • (3) Rated 8A @ 120V AC
  • (1) Rated 12A @ 120V AC
• Soft-Start: Yes (helps extend pump life)
• Construction: Powder-coated 16-gauge aluminum
• AquaBus Ports: 2
• Requires: Neptune Systems Apex Controller

What's Included?

Neptune Systems EB4 Energy Bar 4

AquaBus Cable (3 Feet)
