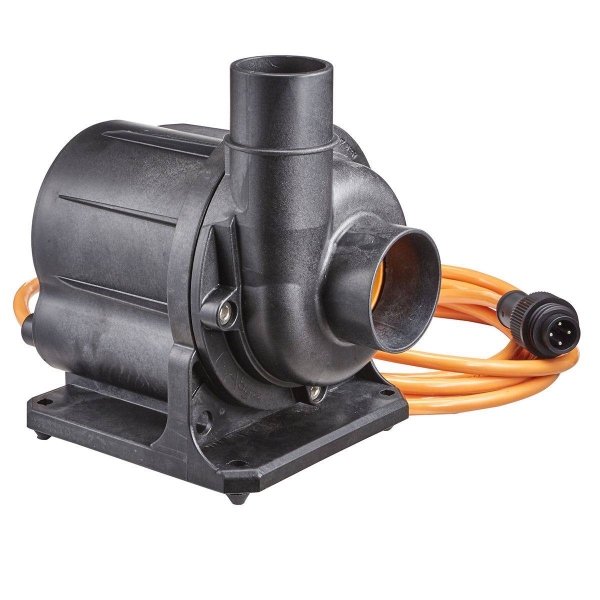

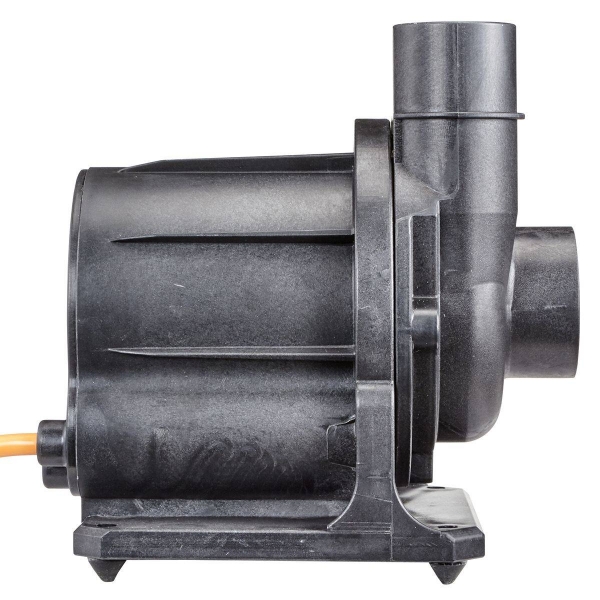

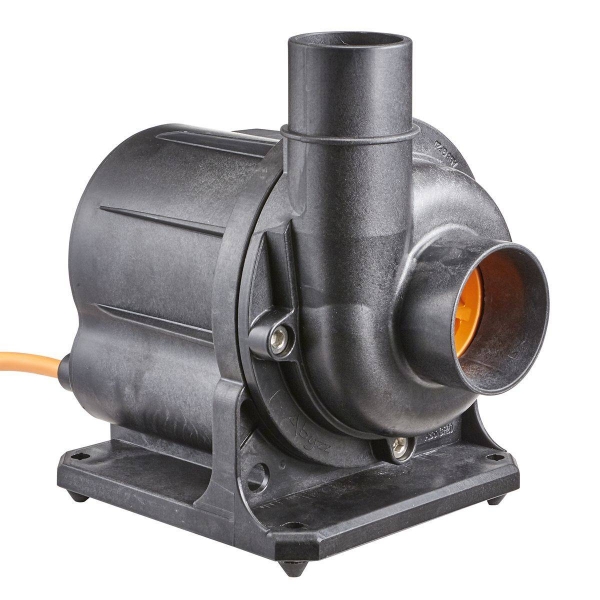

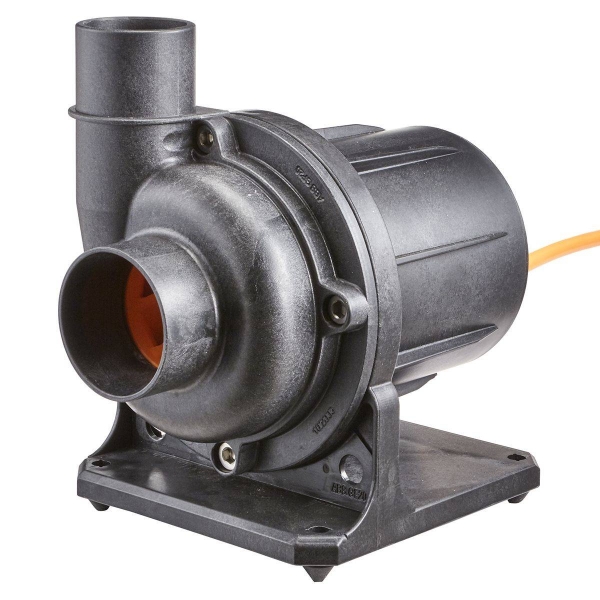

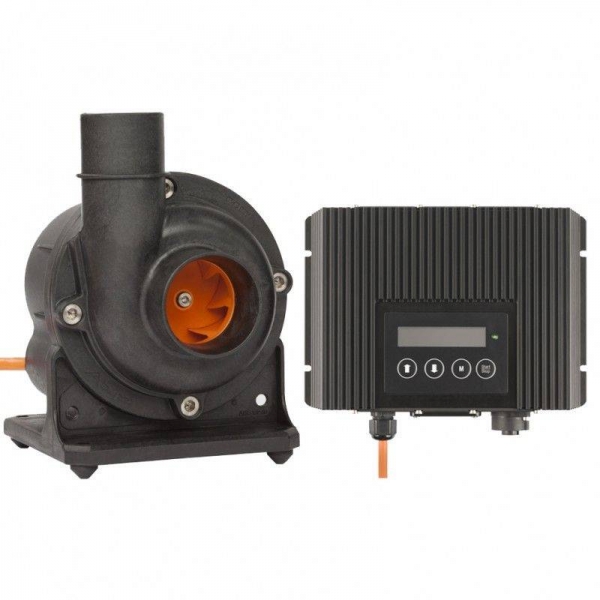

A200 IPU Controllable DC Pump (3,800 GPH) - Abyzz

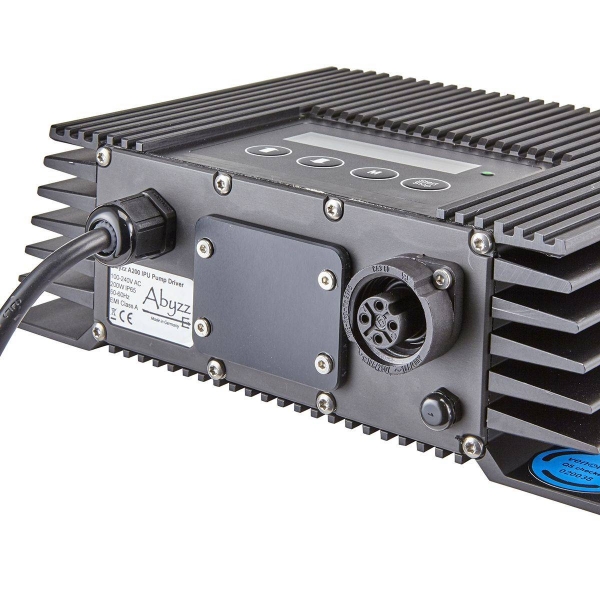

Now Includes an IP65 Rated, Splash-Proof Controller

Perfect for large saltwater aquariums, ponds, water features, creeks, freshwater aquariums, or any other project that requires a powerful water pump. Abyzz Controllable DC Pumps are known for their reliability and performance. Upgrading from the standard A-series, the IPU-series includes an IP65-Rated controller housing that is splash-proof and ideal for the harsh conditions that may be required. The A200 IPU Pump can be used internally in the water or externally allowing it to meet the needs of your aquarium and with a maximum head height of 28.8 feet, Abyzz pumps are ideal for basement sumps that need to push up a story to a display aquarium, or large waterfall features.

• Super Silent and Energy Efficient
• Internal or External Applications
• BOOSTMODE increases flow by 700 GPH
• Fully Controllable with Digital Display
• Driver Heatsink is Optimized for the Pump
• Integrated Pre-Programmed Flow Modes

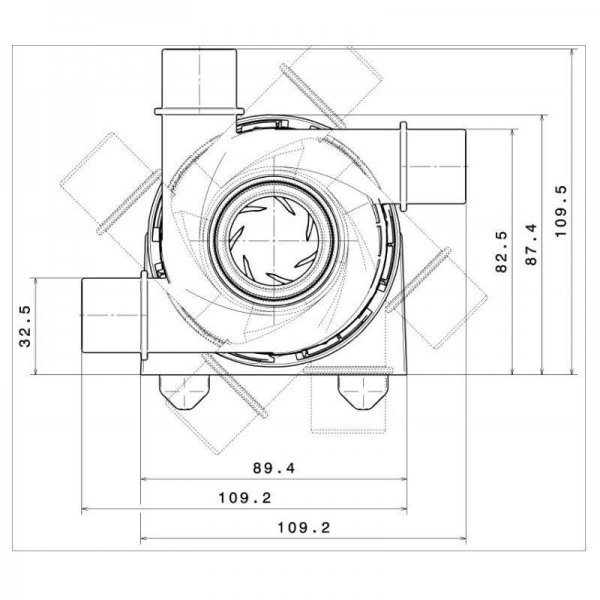

• Rotatable Volute & Removable Base
• Water Resistant Cable Connections
• Ideal for Commercial Applications
• 10-Year Warranty

Two Models Available:

• A200 IPU Controllable Pump with 3 Meter Cord
• A200 IPU Controllable Pump with 10 Meter Cord

Note: Cord length is the distance from the pump to the controller

The Abyzz A200 IPU pump has a titanium impeller, a programmable driver, and a sine-wave controlled, three-phase synchronous pump. The efficiency of the motor is more than 90%, which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution. The integrated bearing flushing provides optimum protection against calcination. In conjunction with the silicon carbide bearings and special hard metal shaft, you are certain to have a very low-maintenance operation. All the materials used are designed to have a long lifetime and meet the highest requirements and quality standards. The Abyzz A200 IPU was developed and manufactured in Germany by Venotec.

• Soft startup
• Precise speed adjustment in steps of 1%
• Wide range input with active power factor correction
• Integrated programming to generate waves, bursts, and random flow patterns with additional BoostMode to override actual programming
• Comprehensive safety functions, such as dry run warning, temperature alert, overcurrent protection, speed zero alert)
• Auxiliary port for peripheral devices
• Lockable cables and plug connections
• Remarkably low-noise operation

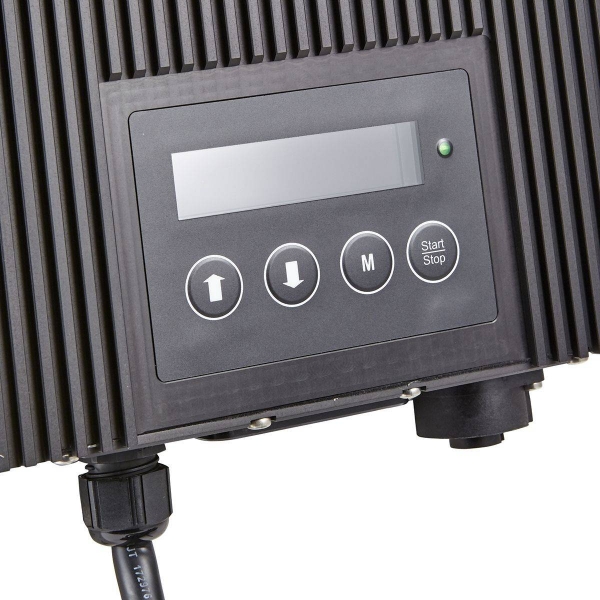

• Multicolor background LCD display
• Splashproof driver (IP65)
• High quality IP65 motor cable connector

Specifications:

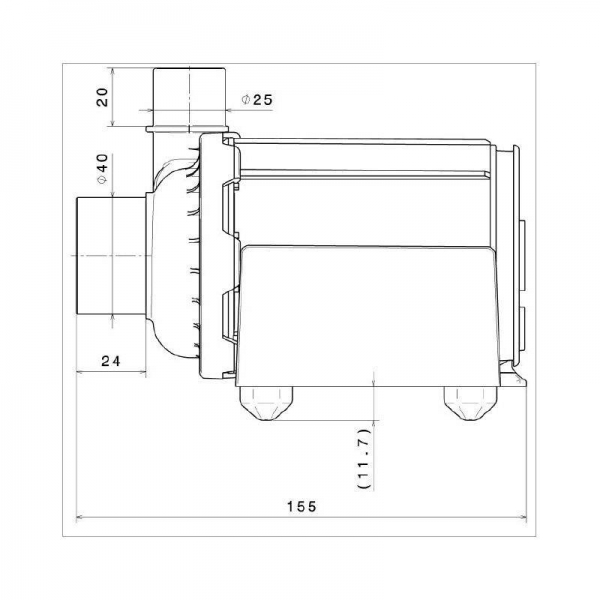

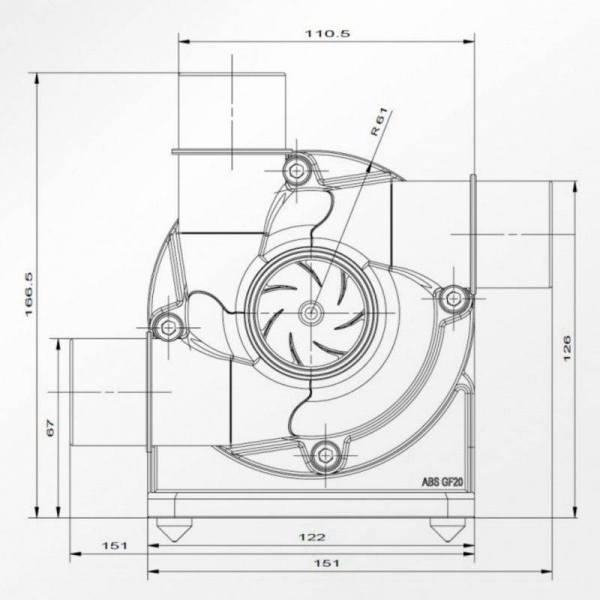

Pump Dimensions - 7" L x 6" W x 6.75" H

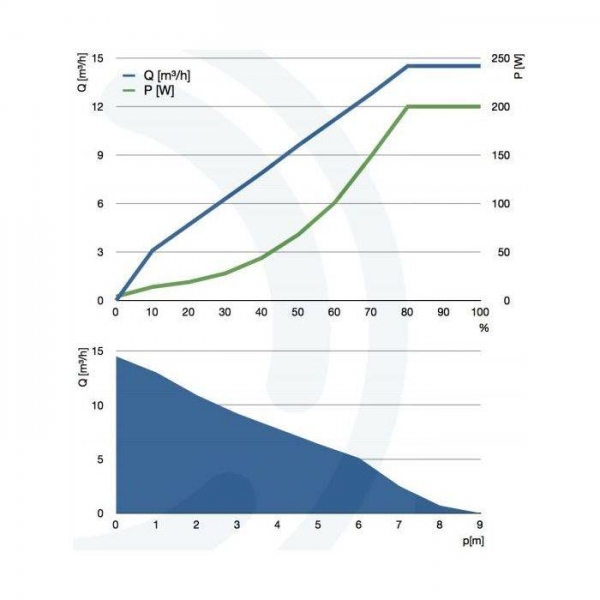

Max Flow Rate - 4500 GPH (with BoostMode enabled)

Rated Flow Rate - 3800 GPH (with BoostMode disabled)

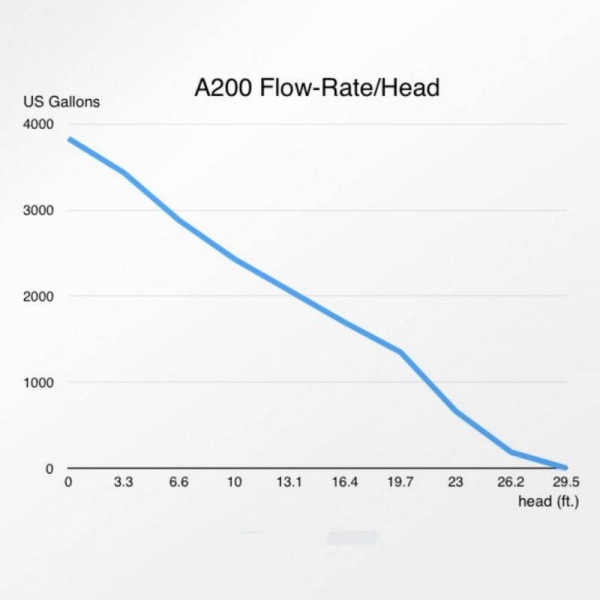

Max Head Height - 28.8 Feet

Pump Input Connection - 50mm

Pump Output Connection - 40mm

Pump Speed Control Increments - 1% (1% - 100%)

Max Operating Pressure - 17.4 PSI

Max Pump Immersion Depth - 6.5 Feet

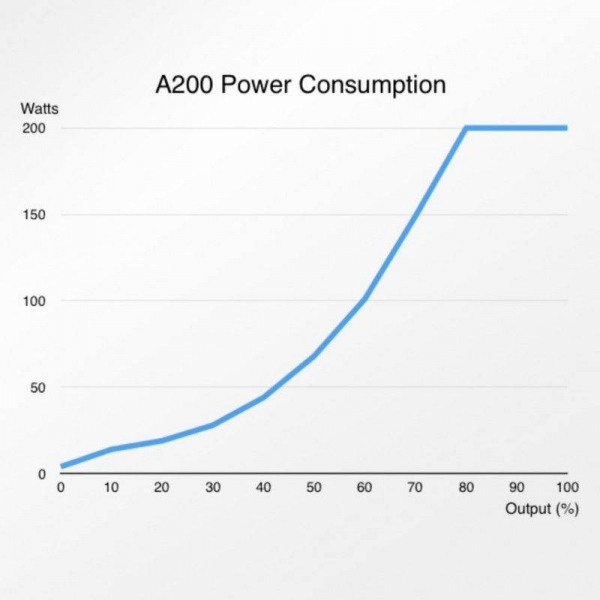

Power Consumption - 4 - 200 watts

Operating Voltage - 100 - 240V

Pump ambient temperature - 34-122°F

Driver ambient temperature - 32-86°F (without additional cooling)

What's Included?

1x Abyzz A200 IPU DC Controllable Pump with Cord

1x Abyzz A200 IPU Controller

1x Power Cord

1x 10-Year Warranty Registration Information
